THE C.M.S. 9002 DUAL OSCILLATOR MODULE IS A DUAL DISCRETE PRECISION VOLTAGE CONTROLLED ANALOG WAVEFORM GENERATOR. SAWTOOTH AND VARIABLE WIDTH PULSE ARE AVAILABLE SIMULTANEOUSLY.

THE OUTPUT FREQUENCY RANGE IS FROM 10HZ TO 20,000HZ WITHOUT EXTERNAL CONTROL VOLTAGES AND THE CONTROL VOLTAGE RANGE IS 10 OCTAVES ON EACH RANGE. FRONT PANEL CALIBRATED V/OCT INPUTS ACCEPT KEYBOARD CONTROL AND ARE PRE-WIRED TO THE KEYBOARD BUSS. MODULATION WITH ATTENUATORS AS WELL AS VARIABLE PULSE WIDTH MODULATION IS PROVIDED. THE FM MODULATION INPUTS AND THE PULSE WIDTH MODULATION INPUTS ARE ALL PRE-WIRED TO THE OPPOSING VCO OUTPUTS FOR DRASTIC CROSS MODULATION EFFECTS. PULSE CAN BE MANUALLY VARIED FROM -5% TO +105%. OSCILLATOR "A" HAS A SWITCH THAT SYNCS IT TO OSCILLATOR "B". OSCILLATOR "B" HAS A LFO MODE SWITCH. LED MONITORS ARE ALSO PROVIDED.

THIS MODULE USES 2 RECENTLY DEVELOPED C.M.S. 4047 DISCRETE SUB-MODULES TO ASSURE PROPER SPECTRAL DENSITY, RICH HARMONIC CONTENT AS WELL AS PRECISION TRACKING AND STABILITY INDEPENDENT OF TEMPERATURE AND HUMIDITY CHANGES.

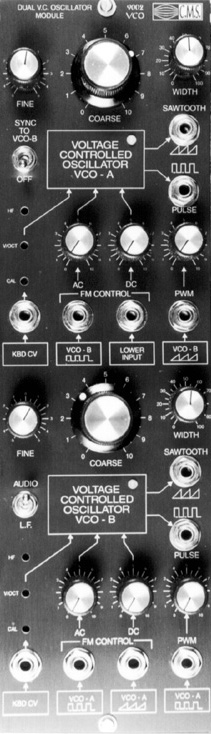

THE LARGE, HIGH RESOLUTION, BLACK ANODIZED FRONT PANEL (10.3" X 3") IS LAVISHLY EQUIPPED WITH ERGONOMIC FLOWCHART GRAPHICS, DETAILED GRADUATIONS FOR PRECISE CONTROL, AND HIGH QUALITY COMPONENTS FOR RELIABLE, SERVICE FREE OPERATION.

ELECTRICAL SPECIFICATIONS:

OUTPUTS:

• FREQUENCY VCO A 10HZ - 20KHZ
• FREQUENCY VCO B .03HZ - 20KHZ IN TWO RANGES
• SAWTOOTH AND PULSE: 0 VOLTS TO +10 VOLTS P-P

INPUTS:

• FREQUENCY MODULATION: EXPONENTIAL - 1V PER OCTAVE
• PULSE WIDTH MODULATION: 10% PER VOLT
• INPUT IMPEDANCES: 100K OHM
