10 CHANNEL DISCRETE STEREO MIXER
MODULE 9015

FEATURES:

  • USES THE NEW HIGH FIDELITY 4080 OP-AMPS FROM C.M.S.
  • USUALLY USED AS SUMMER FOR NUMEROUS VCOS
  • EXCEPTIONAL SONIC CHARACTERISTICS
  • CAN BE USED AS A STANDARD STEREO MIXER
  • CAN BE USED AS 2 SEPARATE MIXERS
  • USED WITH 9012D FOR PANNING EACH BAND IN THE STEREO FIELD

CONSTRUCTION:

  • DISCRETE C.M.S. SUBMODULES ENSURE CHIP FREE AUDIO PATH
  • HIGH QUALITY ELECTRONIC COMPONENTS, HAND ASSEMBLED AND TESTED
  • MILITARY GRADE HARDWARE, POTENTIOMETERS, JACKS, KNOBS

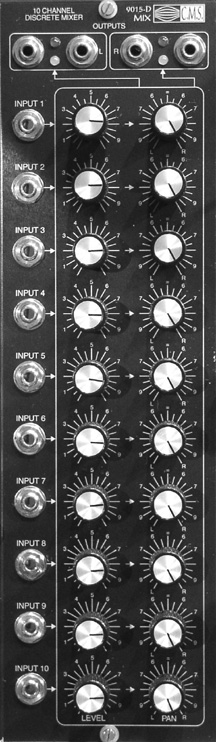

  • HI RESOLUTION, BRUSHED, BLACK ANODIZED FRONT PANEL
  • HAND SELECTED, HIGH SPEED. LARGE GEOMETRY TRANSISTORS
  • SUB-MODULAR DESIGN PROVIDES EASY SERVICE, UPGRADES

AT C.M.S., WE BELIEVE WHEN YOU ARE PUTTING TOGETHER A DISCRETE SYNTHESIZER, AND YOU WANT A TRULY MASSIVE OR ORCHESTRAL SOUND, GO FOR NUMEROUS VCOs. THE SOUND OF 8-10 SLIGHTLY DETUNED DISCRETE VCOs GOING THROUGH A DISCRETE FILTER AND VCA SOUNDS TRULY AMAZING! TO KEEP THE SIGNAL PATH PURE, YOU NEED A HIGH PERFORMANCE DISCRETE MIXER.

THE C.M.S. 9015 IS A 10 INPUT PURELY DISCRETE HIGH FIDELITY STEREO MIXER DESIGNED FOR USE IN THE C.M.S. 9000 SERIES MODULAR SYNTHESIZER SYSTEM. THIS MODULE IS USUALLY USED FOR SUMMING MULTIPLE OSCILLATOR OUTPUTS. SPLITTING OR PANNING VCOs INTO A STEREO SIGNAL PATH FOR DUAL FILTERING, AMPLITUDE MODULATION ETC. THIS UNIT CAN ALSO BE USED AS 2 SEPARATE MIXERS. WHEN USED IN CONJUNCTION WITH THE SEPARATE OUTPUTS OF A 9012 MODULE, STEREO PANNING OF EACH OF THE 10 FREQUENCY BANDS OF THE 9012 FILTER BANK IS POSSIBLE LEADING TO SOME INTERESTING FREQUENCY DEPENDENT STEREO EFFECTS SUCH AS STEREO COMB FILTERING, RESONATING ETC.

THIS UNIT UTILIZES C.M.S.'S NEW 4080 HIGH FIDELITY DISCRETE OPERATIONAL AMPLIFIERS TO ENSURE AN ACCURATE AND RICH SOUNDING MIX. THE UNIT ALSO FUNCTIONS AS 2 SEPARATE AUDIO MIXERS. EACH INPUT HAS A RESPECTIVE VOLUME AND PAN POT. EACH CHANNEL HAS DUAL OUTPUTS.

EACH OUTPUT CHANNEL IS PROVIDED WITH LED SIGNAL AND OVERLOAD INDICATORS. A GREEN LED GLOWING INDICATES THAT MINIMAL SIGNAL LEVEL HAS BEEN ACHIEVED. A RED LED IS ENERGIZED WHEN AN OVERLOAD CONDITION IS PRESENT.

ELECTRICAL SPECIFICATIONS:

INPUTS:

  • NOMINAL AUDIO INPUT: 10 V P-P, +/-10V MAXIMUM
  • AUDIO INPUT IMPEDANCE: 100K OHM

OUTPUTS:

  • FREQUENCY RESPONSE: +1Db,D.C. - 40KHZ
  • GAIN: UNITY
  • NOMINAL LEVEL:10V P-P, +/-10V MAXIMUM
  • ALL IMPEDANCES: 1K OHM
