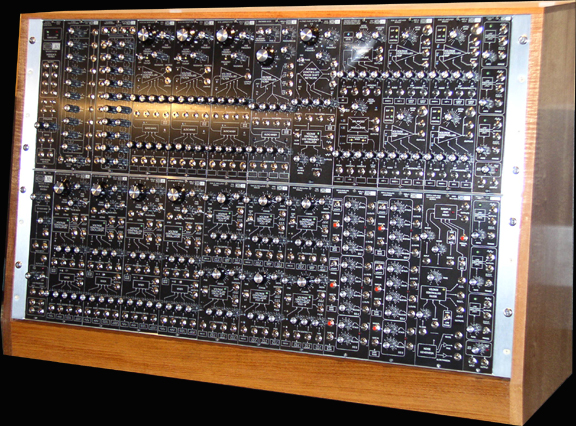

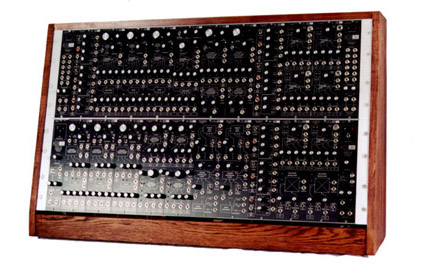

CMS MODEL MC-24 MODULAR SYNTHESIZER









C.M.S. is proud to announce the introduction of the new MC series modular consoles. The MC-24 is a 24 module slanted hardwood cabinet with custom extruded aluminum module rails and a high output power supply.

The MC-24 comes equipped with 10 of CMS's new ultra-linear discrete VCOs (4047). 4 of CMS's new Phatron filters (4042). Also standard on the MC-24 are 4 of the new CMS discrete VCA modules (4088). To mix the copious amount of VCOs together, we have come up with the new 9015 10 channel discrete stereo mixer featuring CMS's new discrete op-amp modules (4080). These unique elements, and many more too numerous to list here, combine to form an instrument of unparalleled sonic capabilities.

Serious inquiries only.




10 Voltage controlled oscillators
4 Audio mixers / voltage processors
2 24 Db lowpass filters
2 24 Db highpass/lowpass filters
4 Voltage controlled amplifiers / V.C. voltage processors
1 Voltage controlled harmonic multiplier
1 Voltage controlled balanced modulator / VCA
1 14 Stage phase shifter
1 10 channel stereo mixer
1 10 band comb filter/ fixed filter bank
6 Envelope generators
1 Sample & hold
1 Voltage controlled clock
1 Noise source - 3 flavors
4 LFO's
1 Gate delay
1 CV buss processor
1 Voltage triggered lag processor
2 Voltage sources
2 Attenuators
4 Multiples
1 24 module aluminum sub-frame
1 Walnut hardwood cabinet
1 3.0 amp power supply with remote sensing



NOW STANDARD ON ALL MC-24s

    • 10 DISCRETE ULTRA-LINEAR VCOs
    • 2 PHATRON FILTERS
    • 2 SUPER-TRANSISTOR DISCRETE FILTERS
    • 4 DISCRETE VCAs
    • A DISCRETE 10 INPUT STEREO MIXER


ALSO AVAILABLE:

MR-24 - A similar arrangement in 19" rack form consisting of 2 - 12 space, extruded aluminum cabinets

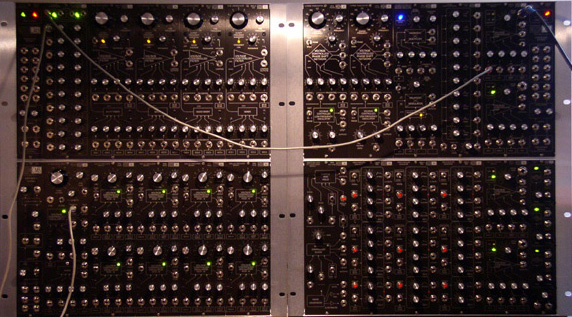

THIS CUSTOMER CONTROLS HIS CUSTOM MODULAR SYSTEM WITH AN ASR-10

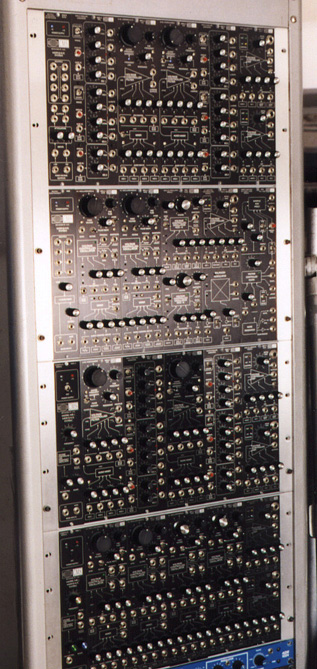

THIS CUSTOMER USED A VERTICAL RACK TO MOUNT HIS CUSTOM MR-24
MR-24
