| C.M.S.
Module 1067 contains two independent envelope generators designed
for use in the CMS Euro-Rack Modular system.
The
ADSR in this high quality hand made module is an exact replica
of the ADSR circuit used in the ARP 2500 synthesizer. The
AR generator is an improved version of the AR generator found
in the ARP 2600.
The
C.M.S.1032 Dual Envelope Generator module features high speed
FET switching circuitry to produce extremely fast response
times. This is useful in generating high speed percussive
envelopes found in nature. Many synthesizer designers have
frankly underestimated the importance that high speed envelopes
have in defining the sound of the instrument.
Each envelope generator features
a three position, time range switch, extending the Attack,
Decay and Release times by a time factor of 2 and 3.
The ADSR has 3 outputs. Two are
positive and one is negative. The AR has one positive output.
Each envelope features dynamic
LEDs built into the slider shafts. The level of brightness
of the LEDs is determined by the output level the respective
envelope generator.

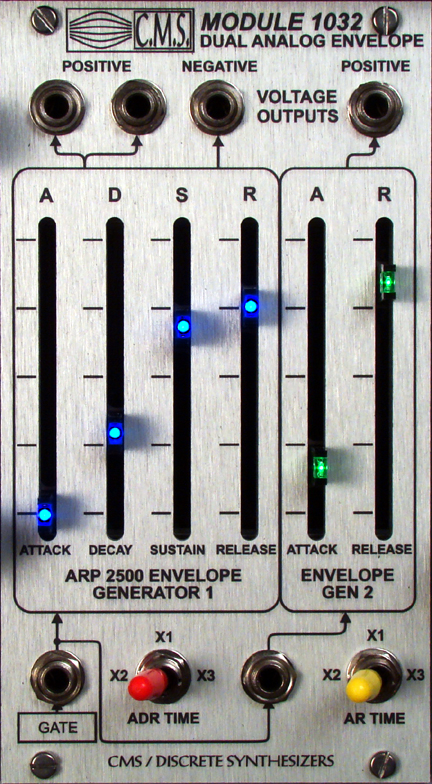

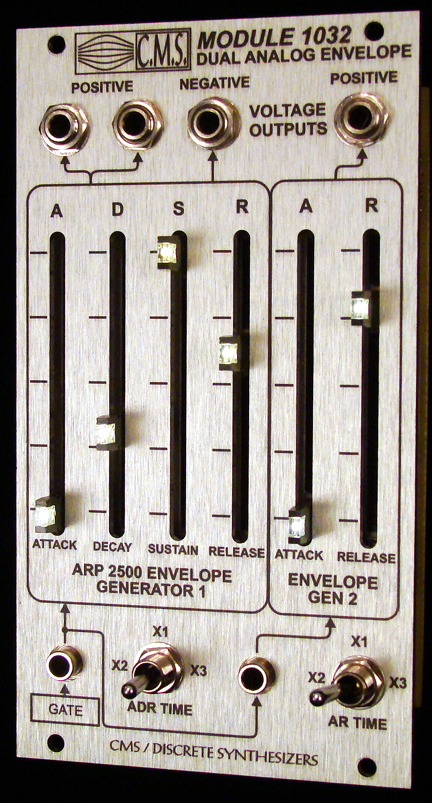

The high quality silver anodized
front panel facilitates easy comprehension of the functions.
The illuminated sliders provide instant visual feedback of
time and voltage settings.
Sub-modular design for easy
service. High quality components assure decades of reliable
operation. |
