LOW NOISE PRECISION 6 CHANNEL AUDIO MIXER

MODULE 1070



FEATURES:

  • LOW NOISE , LOW DISTORTION AND HIGH SLEW RATE
  • INPUTS CAN BE NORMALIZED TO OTHER MODULES
  • 6 ATTENUATED INPUT CHANNELS
  • 4 OUTPUTS, 2 POSITIVE AND 2 NEGATIVE PHASE
  • SLIDE CONTROLS FOR INSTANT AND PRECISE VISUAL FEEDBACK OF MIX LEVELS
  • ACCURATELY AND TRANSPARENTLY PROCESSES AUDIO

CONSTRUCTION:

  • HIGH QUALITY ELECTRONIC COMPONENTS, HAND ASSEMBLED AND TESTED
  • PROFESSIONAL GRADE HARDWARE, POTENTIOMETERS, JACKS
  • HI RESOLUTION, BRUSHED, SILVER ANODIZED FRONT PANEL
  • WARM WHITE LEDS ARE EASY ON YOUR RETINAS

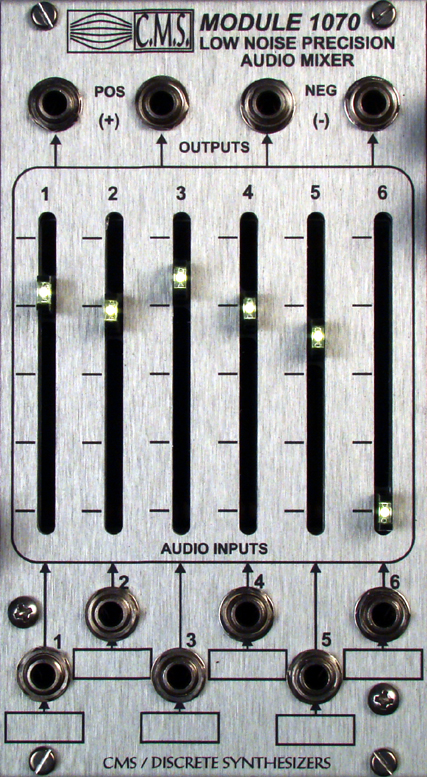

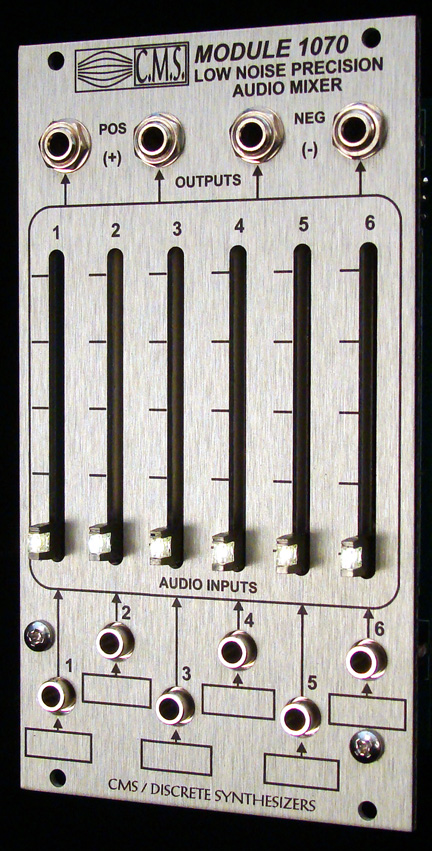

C.M.S. Module 1070 contains a professional audio grade 6 channel mixer. This high fidelity mixer is often used to mix multiple 1004 oscillators together before further audio processing. It can be used to precisely mix 6 different audio signals of any kind. A simple but essential tool for reproducing the ARP 2500 sound.

Here at CMS, we believe that slide controls have a distinct advantage in certain situations such as mixers and envelope generators. This is why we designed the1070 mixer and 1032 dual envelope with high accuracy slide pots.

We also designed the 1070 mixer to have the highest quality audio fidelity possible. This precision audio mixer is made with exactly the same analog circuitry that we use in our now world famous 1004 and 1047 Euro-Rack modules for supreme audio quality.








ELECTRICAL SPECIFICATIONS:

OUTPUTS:

  • FREQUENCY RESPONSE: +1Db,20HZ - 40KHZ
  • GAIN: UNITY
  • MAXIMUM OUTPUT LEVEL = 20V P-P
  • OUTPUT IMPEDANCES: 1K OHM

INPUTS:

  • NOMINAL AUDIO INPUT: 8V P-P, +/-10V MAXIMUM
  • AUDIO INPUT IMPEDANCE: 100K OHM
  • CONTROL INPUT IMPEDANCE: 100K OHM
