THE CMS
1004T PEARLMAN OSCILLATOR IS AN EXACT REPRODUCTION
OF THE UNIQUE AND REVOLUTIONARY TEMPERATURE COMPENSATED VCO
CIRCUIT COMBINED WITH ANOTHER CIRCUIT UNIQUE TO THE 2500 -
THE "T" WAVEFORM MIXER - BOTH DESIGNED BY ALAN R.
PEARLMAN. |
|
|
|
|
|
|
|
|
|
|
|
THE CMS
1004OP OSCILLATOR OUTPUT EXPANDER KIT PROVIDES 5
SIMULTANEOUS VCO OUTPUTS AS WELL AS AN ADDITIONAL T MIXER
OUTPUT. IT COMES WITH A DETACHABLE WIRING HARNESS. 4HP WIDE.
CURRENT ISSUE 1004 MODULES NOW FEATURE A NEW REAR CONNECTOR
- NO SOLDERING. |
|
|
|
|
|
|
|
|
|
|

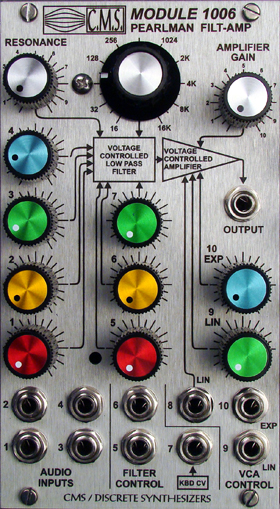

THE CMS
1006 PEARLMAN FILT-AMP IS THE CORE OF THE 2500 SYSTEM.
IT IS A TRIPLE MODULE: A HIGH QUALITY 4 INPUT AUDIO MIXER.
A GREAT SOUNDING 4 POLE DISCRETE TRANSISTOR LADDER FILTER.
THE CLASSIC ARP CURRENT MIRROR VCA WITH SIMULTANEOUS EXPONENTIAL
AND LINEAR CV RESPONSES. |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
THE CMS
1016 DUAL NOISE AND RANDOM VOLTAGE GENERATOR MODULE
PRODUCES HIGH QUALITY, TRUE RANDOM NOISE SIGNALS AS WELL AS
THE DISTINCTIVE SLOW RANDOM SIGNALS. THESE ARE VERY USEFUL
AS MODULATION SOURCES. |
|
|
|
|
|
|
|
|
|
|
|

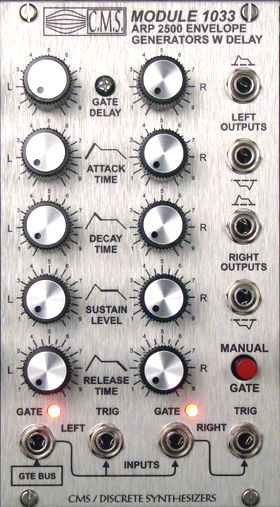

THE CMS
1033 DUAL ENVELOPE GENERATOR WITH DELAY USES SPECIAL
HIGH GAIN TRANSISTORS TO ATTAIN SOME VERY FAST RESPONSE TIMES.
LIKE ALL OF OUR MODULES, THE CMS 1033 USES THE EXACT DISCRETE
CIRCUITRY THAT THE ORIGINAL 1033 USED, MADE TO CMS'S ULTRA
HIGH STANDARDS. |
|
|
|
|
|
|
|
|
|
|
THE CMS
1036 DUAL SAMPLE & HOLD IS A MODULE THAT UTILIZES
6 SEPARATE CIRCUITS IN A COMPACT AND FUNCTIONAL FORMAT. THERE
ARE: 2 INDEPENDENT VOLTAGE CONTROLLED LOW FRQUENCY PULSE OSCILLATORS
WITH EXTERNAL CONTROL. TWO HIGH PRECISION SAMPLE AND HOLD
CIRCUITS AND TWO INDEPENDENT WHITE NOISE GENERATORS. |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|

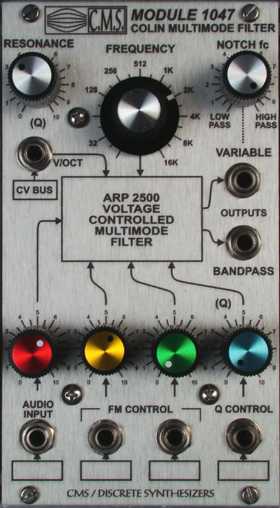

THE CMS
1047 MULTIMODE FILTER IS AN IMPROVED VERSION OF THE
FAMOUS ARP 1047. IT HAS SIGNIFICANTLY LOWER NOISE SPECS COMPARED
TO THE ORIGINAL. IT IS A KEY INGREDIENT IN OBTAINING THE ARP
2500 SOUND. THE CMS 1047 IS NOW AVAILABLE FOR PURCHASE. CLICK
HERE FOR MORE INFORMATION. |
|
|
|
|
|
|
|
|
|
|
|
THE CMS 1050 MIX-SEQUENCER
IS A FAITHFUL REPRODUCTION OF THE FAMOUS ARP 1050 MODULE. IT
UTILIZES THE EXACT DISCRETE AUDIO SWITCHING CIRCUITRY THAT THE
ORIGINAL ARP 1050 USED. DC VOLTAGE IS PRE-PATCHED TO ALL INPUTS
FOR STANDARD VOLTAGE SEQUENCING. |
|
|
|
|
|
|
|

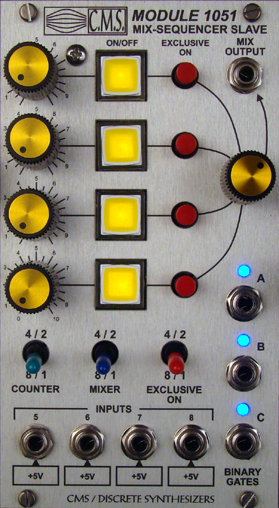

THE CMS 1051 MIX-SEQUENCER
SLAVE EXPANDS THE 1050 MIX SEQUENCER TO THE FULL 8
CHANNELS. THIS MODULE CAN ALSO FUNCTION INDEPEDENTLY AS A HIGH
QUALITY 4 CHANNEL MIXER. THIS MODULE IS DESIGNED FOR LARGER
SYSTEMS. 3 AUX BINARY GATE OUTS ARE PROVIDED FOR RHYTHMIC TRIGGERING. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|

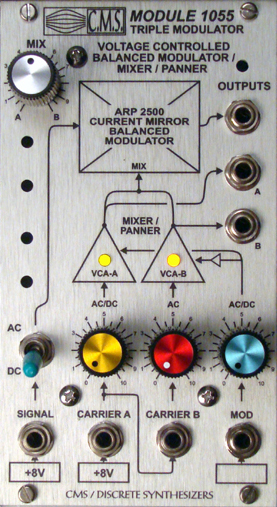

THE CMS 1055 TRIPLE
MODULATOR IS AN UPDATED AND MUCH MORE USEFUL VERSION
OF THE ARP 1005 MODULE. IT USES THE EXACT CIRCUITRY THAT THE
ARP 1005 USES WITH BASICALLY A REVERSED SIGNAL PATH ORDER,
PLUS AN ADDITIONAL VCA FOR PANNING AND VOLTAGE CONTROLLED
MIXING EFFECTS, JUST TO NAME A FEW. |
|
|
|
|
|
|
|
|
|
|
|

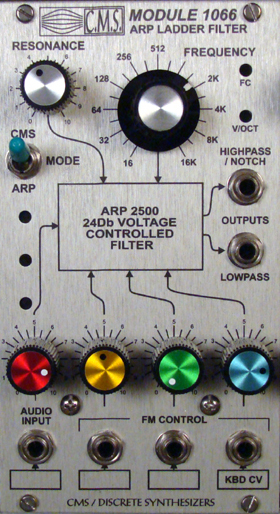

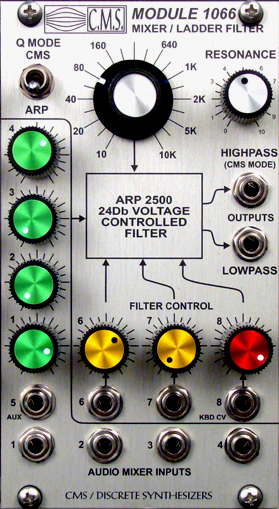

THE CMS
1066B ARP LADDER FILTER IS AN IMPROVED VERSION OF THE
FILTER SECTION FROM THE ARP 1006 FILT-AMP MODULE. IT IS ARP's
VERSION OF THE TRANSISTOR LADDER. OUR UPDATED VERSION NOW FEATURES
A 5 INPUT AUDIO MIXER. CMS MODE SWITCH FOR POWERFUL "Q". |
|
|
|
|
|
|
|
|
|
|

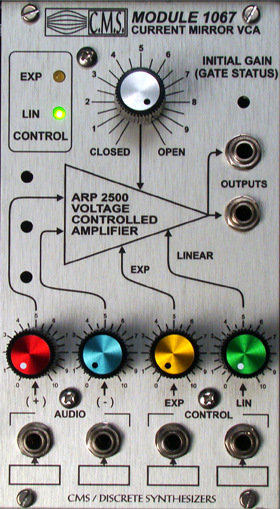

THE CMS 1067 CURRENT
MIRROR VCA IS A UNIVERSAL MODULE. IT IS A FAITHFUL
REPRODUCTION OF THE 2500 VCA CIRCUIT USED IN THE ARP 1006 AND
1005 MODULES. IT IS ALSO AN IMPROVED VERSION OF THE VCA USED
IN THE ARP 2600. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |

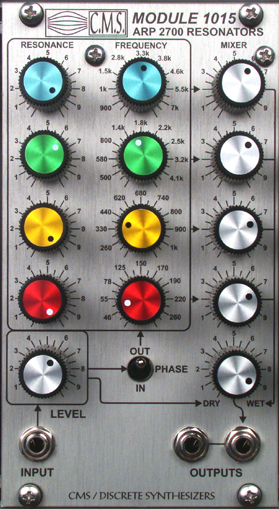

THE CMS 1015 QUAD RESONATOR
IS DESIGNED TO SIMULATE RESONANT ENCLOSURES OFTEN FOUND ON
TRADITIONAL INSTRUMENTS. IT IS ALSO USEFUL FOR GETTING UNUSUAL
AND UNIQUE SYNTHESIZER TONALITIES. WHAT DOES IT SOUND LIKE?
A MORE POWERFUL MOOG FIXED FILTER BANK WITH VARIABLE FREQUENCY
AND RESONANCE |
|
| |
|
|
|
|
|
|
|
|
|

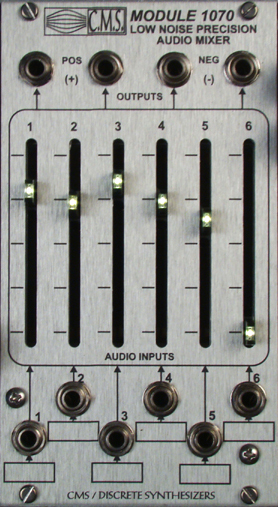

THE CMS 1070 LOW NOISE
PRECISION MIXER IS A HIGH QUALITY AC COUPLED AUDIO
MIXER SPECIFICALLY DESIGNED TO MIX MULTIPLE OSCILLATORS OR
ANY OTHER AUDIO SOURCES TOGETHER FOR FURTHER PROCESSING THROUGH
FILTERS, RING MODULATORS AND VCAs.
|
|
|
|
|
| |
|
|
| |
THE CMS 1020 DUAL PRECISION
QUANTIZER IS USEFUL FOR DIGITIZING THE VARIABLE OUTPUTS
OF SEQUENCERS. IT PERMITS YOU TO SWIFTLY DIAL IN NOTES EXACTLY
ON PITCH, DIVIDED INTO SEMITONES, WHEN COMPOSING ON AN ANALOG
SEQUENCER. EXCELLENT FOR CREATING SERENDIPITOUS BASS LINES. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|

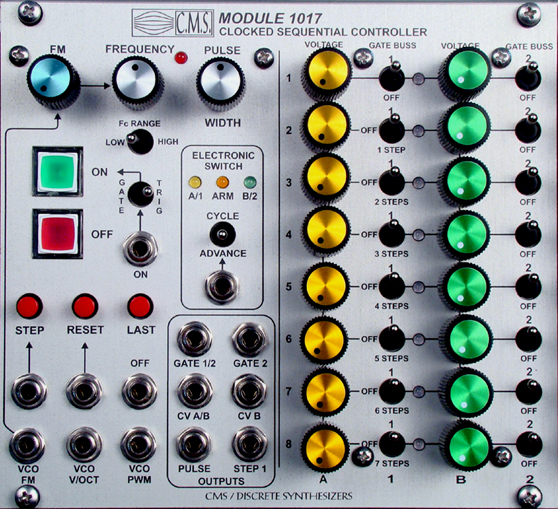

THE CMS 1017 SEQUENCER
IS AN UPDATED CROSS BETWEEN THE ORIGINAL ARP 1027 SEQUENTIAL
CONTROLLER AND THE ARP 1601 TABLETOP SEQUENCER. IT CAN SEQUENCE
VOLTAGES AND GATES IN 2 ROWS OF UP TO 8 STEPS OR 1 ROW OF
UP TO 16 STEPS. THERE IS A BUILT IN, TRIGGERABLE ELECTRONIC
SWITCH THAT LETS YOU SWITCH BETWEEN ROWS A1 AND B2
THE CONTROLLER SECTION FEATURES A CLOCK THAT IS ACTUALLY
A FULLY FUNCTIONAL 2600 VCO. IT CAN RUN AT AUDIO FREQUENCY
AND IT WILL TRACK KEYBOARD CONTROL VOLTAGES PERFECTLY. THIS
ENABLES THE 1017 TO FUNCTION AS AN AUDIO SOURCE OR AIRBITRARY
FUNCTION GENERATOR. IT CAN PRODUCE COMPLEX STEPPED WAVESHAPES
WITH HIGH HARMONIC CONTENT. |
|
|
|
|
|
|
|
|
| |
|
|
| |

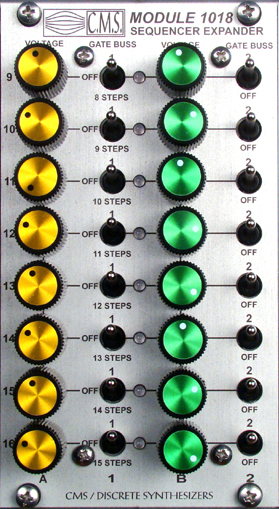

THE CMS 1018 SEQUENCER
EXPANDER PROVIDES 16 MORE VOLTAGES AND 16 MORE GATES
TO THE 1017 SEQUENCER. THIS EXPANDS THE CAPACITY OF THE 1017
TO: 2 ROWS OF 16 STEPS OR 1 ROW OF 32 STEPS.
STEP COUNTS LESS THAN 16/32 ARE AVAILABLE - GATE ROW 1 USES
3 POSITION TOGGLE SWITCHES THAT DETERMINE IF THE GATE IS ON
(UP) OR OFF (CENTER). IF THE SWITCH IS DOWN, THE STEP COUNT
WILL RESET TO THE SETPS INDICATED.
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
